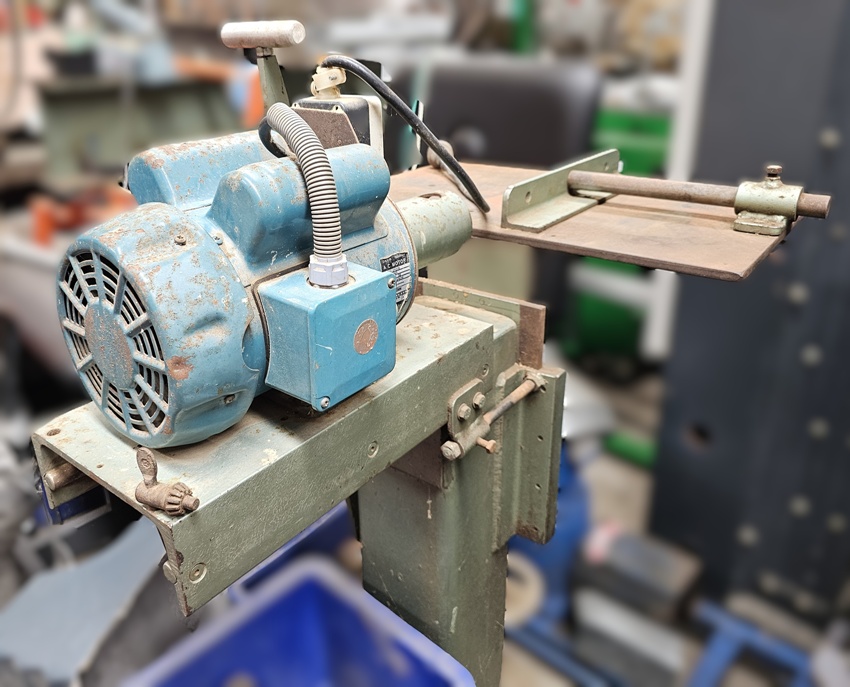

Dowel Borer - Triple

Maker: Sugino Machine Ltd - Japan
Sugino Selfeeder Type ESB - W1310 combined with -

Multi Drill Head type 3D0

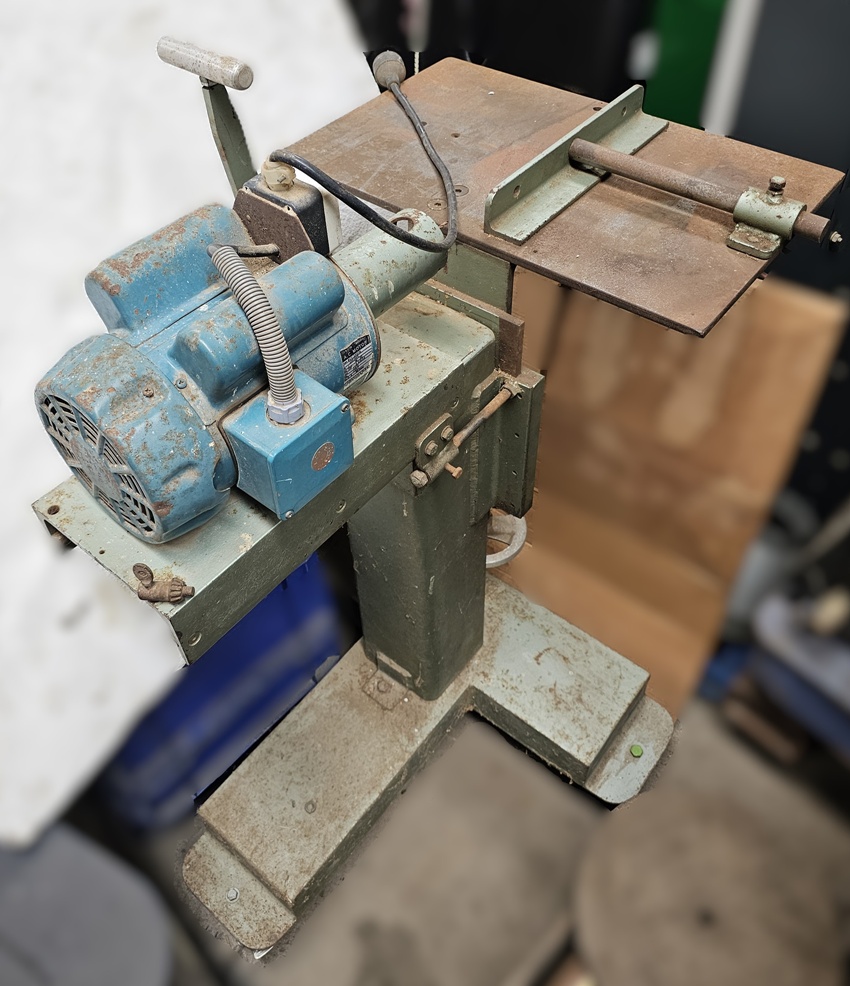

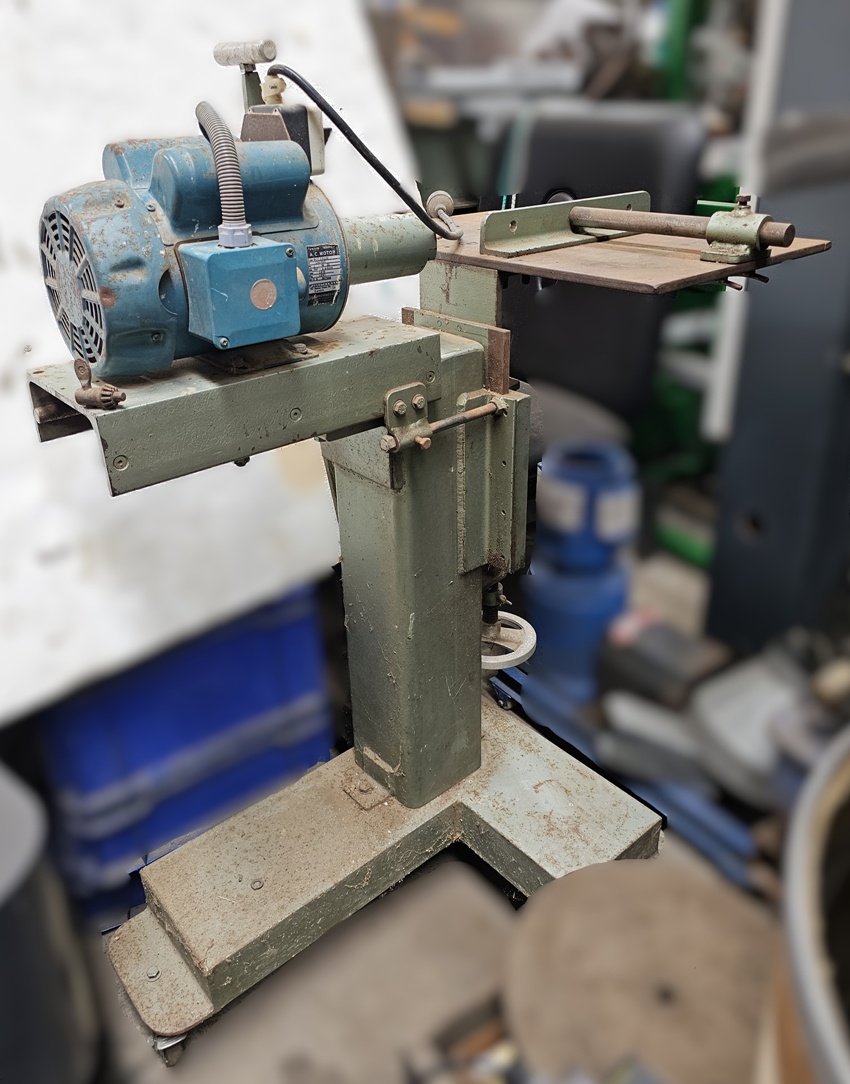

The unit is mounted on an aluminium frame stand.

Feeder specs -
RPM 50/60Hz 1100/1300
Stroke max. 65mm
Chuck cap. 13mm

Drill head specs -
Pitch 27.5mm
Chuck cap. 4.8mm

Compressed air extend and retract.

No air compressor with this unit.
Dimensions: Length 900mm x Width 650mm x Height 850mm
Weight: ~ 50kg
Price: $560 + GST - Prices are in $NZ.
